My Energi Zappi EV Charger Installation in Bury St Edmunds carried out by JDH Electrics. Do you need an EV Charger installed? Contact us today for a free estimate!

A new dedicated Fusebox External IP Rated Electric Vehicle consumer unit & circuit has been installed to serve the new charger – including a surge protection device. At the same time Ultra EV Steel Wire Armoured cable has neatly been cleated from the new consumer unit to the charge point location – which includes separate data cores to monitor the properties energy consumption and future solar generation also battery storage. This uses CT Clamps which feeds into the charger using just one cable & provides data to the app for monitoring and smart charging features.

The Charge Point has been installed onto a dedicated My Energi Pedestal for freestanding charging at the end of the driveway

The EV Charger has been fully inspected & tested using the latest Kewtech KT66DL device, including fault simulation for peace of mind. We have fully certified the project as well as a DNO & Building control notification.

My Energi Zappi EV Charger Installation in Kent carried out by JDH Electrics. Do you need an EV Charger installed? Contact us today for a free estimate!

A new dedicated Electric Vehicle consumer unit & circuit has been installed to serve the new charger – including a surge protection device. At the same time Ultra EV Steel Wire Armoured cable has neatly been cleated – which includes separate data cores to monitor the properties energy consumption and future solar generation also battery storage. This uses CT Clamps which feeds into the charger using just one cable & provides data to the app for monitoring and smart charging features.

The EV Charger has been fully inspected & tested using the latest Kewtech KT66DL device, including fault simulation for peace of mind. We have fully certified the project as well as a DNO & Building control notification.

JDH Electrics have installed a new dedicated circuit for a large Swimming Pool & ASHP in Dover, Kent. A new consumer unit has been installed for the heat pump, & all circuits are fully protected by RCD with a surge protection device installed to protect the sensitive equipment.

The full project has been inspected, tested, certified and a building control notification submitted to the local authority.

Do you need Electrics installing for your swimming pool, hot tub or spa? Contact us here today!

My Energi Zappi EV Charger Installation in Stonham Appal, Stowmarket carried out by JDH Electrics. Do you need an EV Charger installed? Contact us today for a free estimate!

A new consumer unit & dedicated circuit has been installed to serve the new charge point – including a surge protection device. At the same time Steel Wire Armoured cable has been buried from the new consumer unit to the charge point location – which includes separate data cores to monitor the properties energy consumption and future solar generation also battery storage. This uses CT Clamps which feeds into the charger using just one cable & provides data to the app for monitoring and smart charging features.

The Charge Point has been installed onto a dedicated My Energi Pedestal for freestanding charging at the end of the driveway

The EV Charger has been fully inspected & tested using the latest Kewtech KT66DL device, including fault simulation for peace of mind. We have fully certified the project as well as a DNO & Building control notification.

JDH Electrics inspected and tested the fixed wiring during an Industrial EICR in Ashford Kent to ensure the electrical installation is safe for continued use and complaint. At the same time any necessary remedial works identified. Some potentially dangerous issues were found at the time of the test including possible access to live parts, loose connections and circuit breakers being over rated for the cable sizes. All of the necessary remedial works have now been carried out.

Some of the elements inspected & tested include:

• Supply polarity and incoming earth
• Distribution Boards
• ‘Extraneous conductive parts’ – Earth bonding to gas & water & steel for example
• Each individual circuit, to include presence of CPC / earthing conductors and to confirm correct polarity
• Continuity of ring final conductors
• Distribution circuits to sub DB’s
• RCD opperation

Do you need an Electrical Installation Condition Report / EICR? Contact us today for a free quotation

Need power to your Summer House, Shed, Garage, Log Cabin or Kennels? Check out our page here or contact us for a free quotation!

JDH Electrics installed a new electric supply to a dog kennels at the bottom of the garden – using armoured cable from a new small consumer unit in the house. The cabling was neatly clipped to the brickwork, and hurried in the ground up the garden to the kennels. Including adding a circuit for sockets used for panel heaters to keep the dogs warm in the winter months, & automated lighting via an over ride light switch. The consumer unit included a type 2 surge protection device, at the same time main equipotential earth bonding connections made to the incoming water and gas pipes.

The full project has been inspected, tested and certified for peace of mind

A lovely review left by Jennifer:

I was so impressed by JDH electrics, Joe and his team did a fantastic job in installing two outdoor motion sensor lights and two radiators to my double dog kennel in the garden. They were extremely efficient in getting the job done in a timely manner and installed it very neatly with minimal alterations to the dog kennel or the external walls. The cables were sunken underneath the garden also using specific safely measures and a new electrical box and earthing cables were installed to the inside of the house. There is even an isolation switch in the kennel so I can turn the whole lot off if I am away. I was so pleased with the final result and would highly recommended Joe and his team. They are very neat and make sure they ‘make good’ if any damage occurs to the brickwork. I also felt the pricing was very fair considering all the work they had to do. They had the whole job finished within just two days. If you are looking for a professional and thorough workman for your electrical needs don’t hesitate to ask JDH electrics to give you a quote. They will come out and do an assessment and then give you a full breakdown of the work required and an invoice before you decide to go ahead. I will certainly be hiring them again if I have any more electrical work that needs doing in the future. Thank You JDH Electrics ! Excellent Work !

Thank-you for the lovely tea & biscuits!

JDH Electrics carried out replacement of all commercial light fittings throughout the premiss in Kennett, to energy efficient LED lighting units. Saving the clients money on their electricity bill, more reliable and consistent lighting also brighter rooms. The upgrade included our electrician’s replacing emergency exit lights, ceiling bulkheads & battens also lighting in shower and changing rooms.

The units are brightness and colour temperature adjustable to suit a range of installations and room size – depending on specification and client needs.

Contact us today for a free quotation and to tell us about your project

My Energi Zappi EV Charger Installation in Red Lodge carried out by JDH Electrics. Do you need an EV Charger installed? Contact us today for a free estimate!

A new dedicated External Electric Vehicle consumer unit & circuit has been installed to serve the new charger – including a surge protection device. At the same time Ultra EV Steel Wire Armoured cable has neatly been cleated – which includes separate data cores to monitor the properties energy consumption and future solar generation also battery storage. This uses CT Clamps which feeds into the charger using just one cable & provides data to the app for monitoring and smart charging features.

The EV Charger has been fully inspected & tested using the latest Kewtech KT66DL device, including fault simulation for peace of mind. We have fully certified the project as well as a DNO & Building control notification.

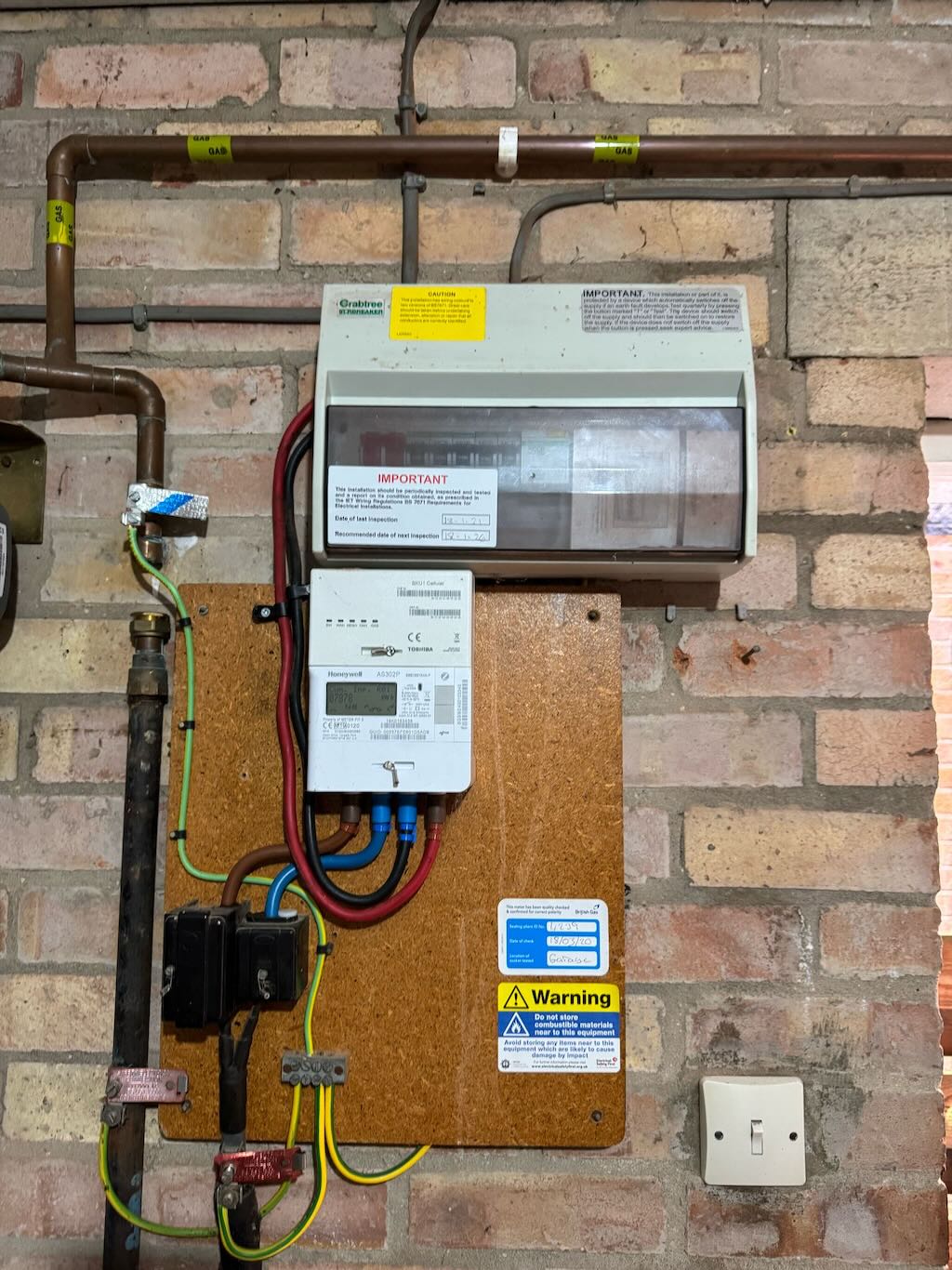

Our electrician’s JDH Electrics initially carried out a full & comprehensive Electrical Installation Condition Report / EICR in Bury St. Edmunds prior to recommending and installing a new consumer units. We tested and inspected the electrical installation to make sure it was safe, and complaint. At the same time any necessary remedial works identified. The circuits have now been divided onto individual RCBO circuit breakers, including a type 2 surge protection device and allowing space for future additions.

A replacement consumer unit has been installed in the garage & downlighting replaced throughout the property with energy efficient LED fittings that are brightness and colour temperature adjustable

Some of the elements inspected & tested include:

• Supply polarity and incoming earth
• Consumer unit
• Earth bonding to gas & water
• Each individual circuit, to include presence of CPC / earthing conductors and to confirm correct polarity
• Continuity of ring final conductors
• Distribution circuit to shed & shed consumer unit
• RCD opperation

The full project has been inspected and tested, also certified with a building control notification submitted to the local authority.

Do you need a consumer unit upgrade? Contact us today for a free quotation!

Partial rewiring of kitchen electrics in Red Lodge for a new kitchen installation carried out by JDH Electrics. Our Electrician modified and re-wired most of the kitchen onto a new grid switch arrangement allowing for neat, tidy & local isolation of the new appliances including dishwasher, microwave, fridge freezer and cooker hood. The circuit for the oven re-located and new LED energy efficient downlight installed at the same time

The full project has been inspected, tested and certified

Do you need your electrics modifying for a new kitchen? Contact us today for a free quotation here!

JDH Electrics have wired a new plant room for a large Swimming Pool & ASHP in Canterbury, Kent. A new IP rated consumer unit has been installed in the pool plant room to prevent any moisture ingress. Along with a dedicated circuit installed for the pool Air Source Heat Pump, as well as a circuit for the sand filter, and pool lighting also pool cover. At the same time a local earth rod has been installed for safety. All circuits are fully protected by RCD and a surge protection device installed to protect the sensitive equipment. The full project has been inspected, tested & certified.

Do you need Electrics installing for your swimming pool, hot tub or spa? Contact us here today!
